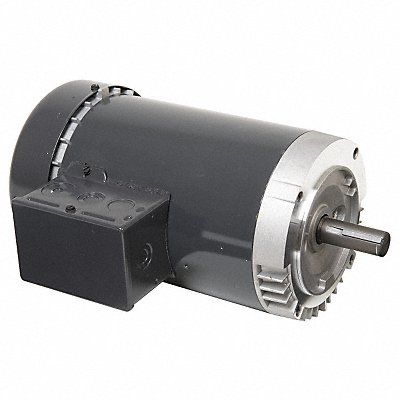

General Purpose Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 1 200 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 27.5-25.0/12.5 256TC Frame Hz 60/50 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face Motor Mounting Position Horizontal or Vertical Shaft Down
Mfr U10E3DCR
| Item Reference | 23J938 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 230 |
| Length (in) | 31 |
| Width (in) | 30.2 |
| Height (in) | 39.2 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
