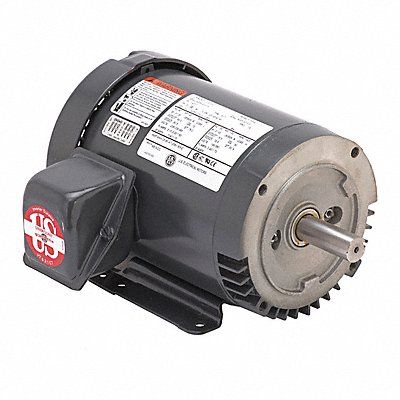

General Purpose Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 800 No of Speeds 1 Voltage 230/460V AC Full Load Amps 3.0/1.50 143TC Frame Hz 60/50 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face/Base Motor Mounting Position Horizontal or Vertical Shaft Down
Mfr U1P2DC
| Item Reference | 23J887 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 40.15 |
| Length (in) | 15.6 |
| Width (in) | 12.6 |
| Height (in) | 9.2 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |
