| Item Reference | 23J882 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 282 |
| Length (in) | 30.3 |
| Width (in) | 22.5 |
| Height (in) | 20.5 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

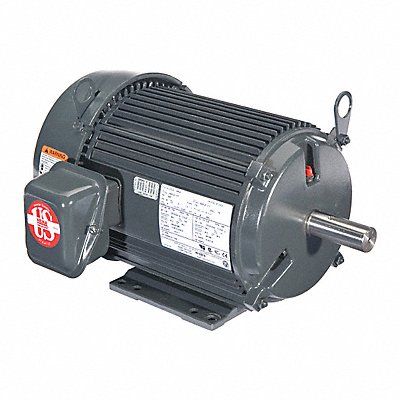

General Purpose Motor Three Phase Motor Design 3-Phase 25 HP Nameplate RPM 3 600 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 65.0-57.0/28.4 284TS Frame Hz 60/50 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal or Vertical Shaft Down
Mfr U25P1DS
