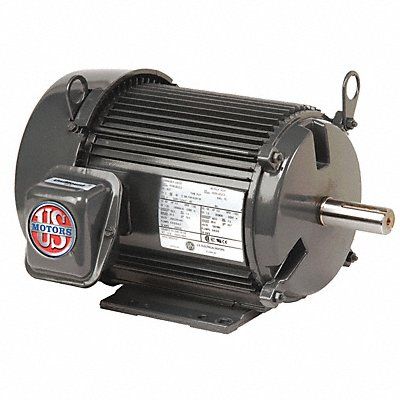

General Purpose Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 200 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 15.0-14.0/7.0 215T Frame Hz 60/50 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal or Vertical Shaft Down
Mfr U5P3D
| Item Reference | 23J868 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 130 |
| Length (in) | 22.3 |
| Width (in) | 17 |
| Height (in) | 14.8 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
