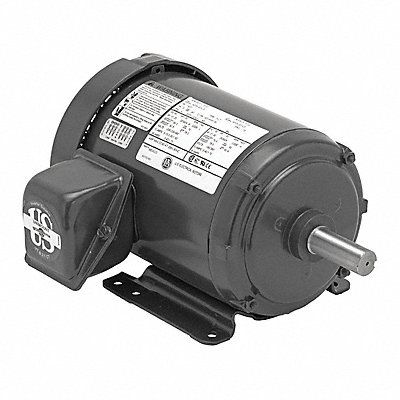

General Purpose Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 800 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 3.1-3.0/1.50 143T Frame Hz 60/50 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal or Vertical Shaft Down
Mfr U1P2D
| Item Reference | 23J854 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 40.15 |
| Length (in) | 15.7 |
| Width (in) | 12.5 |
| Height (in) | 9.1 |
| Harmonization Code | 8501515040 |
| Country of Origin | Mexico |
