| Item Reference | 23J872 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 180 |
| Length (in) | 29.6 |
| Width (in) | 22.4 |
| Height (in) | 20.7 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

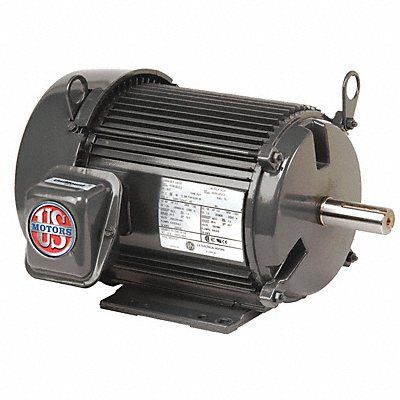

General Purpose Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 1 200 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 20.6-19.0/9.5 254T Frame Hz 60/50 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal or Vertical Shaft Down
Mfr U7P3D
