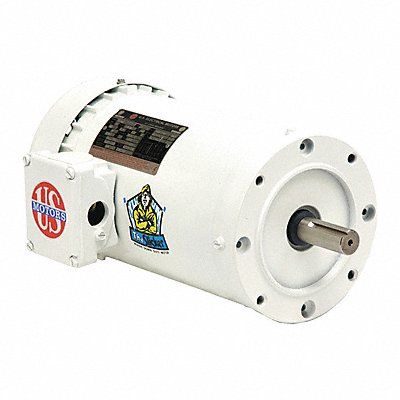

Washdown Motor Three Phase Motor Design 3-Phase 1/3 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 1.9-1.8/0.9 56C Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.4 Motor Thermal Protection None Ins. Class F Max Ambient Temp 104 Degrees F Duty Cycle Continuous NEMA Design None Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Face Motor Mounting Position Horizontal
Mfr WD13S2ACR
| Item Reference | 56JA01 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 26 |
| Length (in) | 15.3 |
| Width (in) | 10.5 |
| Height (in) | 10.875 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |
