| Item Reference | 55ML44 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 32 |
| Length (in) | 18.5 |
| Width (in) | 10.5 |
| Height (in) | 10.875 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

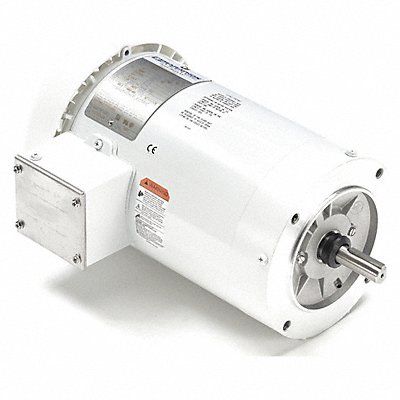

Washdown Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 3 600 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 7.9-6.7/3.4 56C Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CCW CW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base Motor Mounting Position All Angle
