| Item Reference | 56JA35 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 70 |
| Length (in) | 18.5 |
| Width (in) | 13.5 |
| Height (in) | 12.5 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

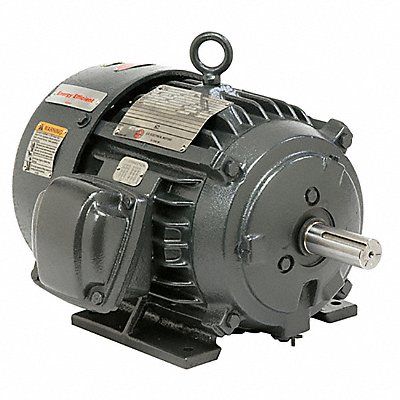

Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 3 505 No of Speeds 1 Voltage 230/460V AC Full Load Amps 3.9/1.9 143T Frame Usable @ 208V No Usable @ 200V No Hz 60 Max Ambient Temp 104 Degrees F Motor Service Factor 1.15 Ins. Class F Hazardous Location Class 1 D / 2 F G Temp Code T3B Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous Motor Mounting Type Rigid Base NEMA Design B Motor Shaft Rotation CW/CCW
Mfr X32P1B
