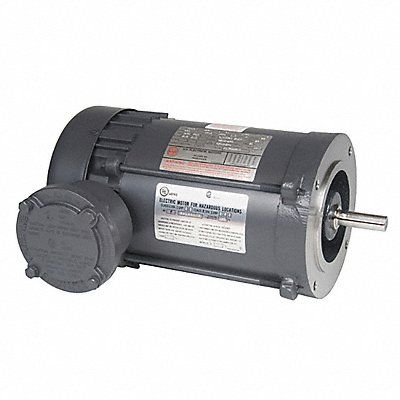

Motor Single Phase Motor Design Capacitor-Start 1/2 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 8.8/4.1-4.4 56C Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Max Ambient Temp 104 Degrees F Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Hazardous Location Class 1 C D / 2 E F G Temp Code T3C Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous Motor Mounting Type Face Motor Shaft Rotation CW/CCW
Mfr XS12CA1JCR
| Item Reference | 56HZ66 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 32 |
| Length (in) | 18.5 |
| Width (in) | 12 |
| Height (in) | 12 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
