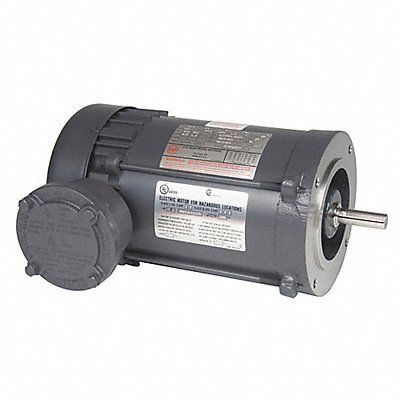

Motor Three Phase Motor Design 3-Phase 1/3 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 1.4-1.3/0.65 56C Frame Usable @ 208V Yes Usable @ 200V No Hz 60/50 Max Ambient Temp 104 Degrees F Motor Service Factor 1.15 Motor Thermal Protection Auto Ins. Class B Hazardous Location Class 1 C D / 2 E F G Temp Code T3C Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous Motor Mounting Type Face NEMA Design B
Mfr XS13SA2DCR
| Item Reference | 56HZ62 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 29 |
| Length (in) | 18.5 |
| Width (in) | 12 |
| Height (in) | 12 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |
