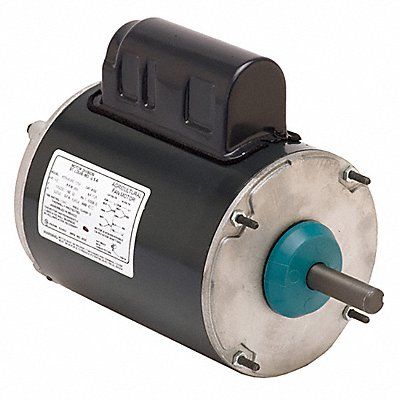

Farm Duty Motor Single Phase Motor Design Split-Phase 1/2 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/230V AC Full Load Amps 8.0/4.0 56 Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1.25 Motor Thermal Protection Auto Ins. Class B Max Ambient Temp 104 Degrees F Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr FD12BA2P
| Item Reference | 56JC08 |
|---|---|
| Brand | U.S. MOTORS |
| Weight (lb) | 32 |
| Length (in) | 18.5 |
| Width (in) | 10.5 |
| Height (in) | 10.875 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
