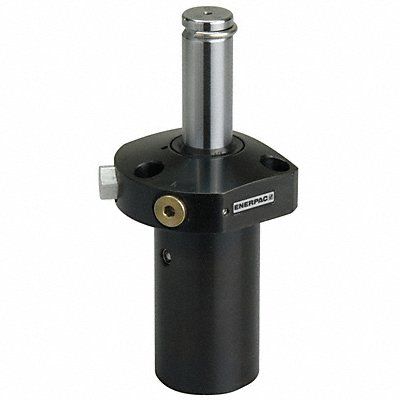

Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Upper Flange Single Acting/Double Acting Single Acting Turns Left Clamping Force 2 400 lb Total Stroke 1.1 in Effective Area Clamped 0.63 sq in Clamping Stroke 0.5 in Max Pressure 5 000 psi Series SU Swing Angle 90 Degrees Port Size #4 SAE Effective Area Unclamped 1.23 sq in Oil Capacity Clamped 0.7 cu in Oil Capacity Unclamped 1.4 cu in Max Oil Flow 100 cu in/min Pressure Range 500 to 5000 psi
Mfr SULS121
| Item Reference | 5UWX7 |
|---|---|
| Brand | ENERPAC |
| Weight (lb) | 4.27 |
| Length (in) | 9.7 |
| Width (in) | 3.6 |
| Height (in) | 3.3 |
| Harmonization Code | 8412210030 |
| Country of Origin | United States |
