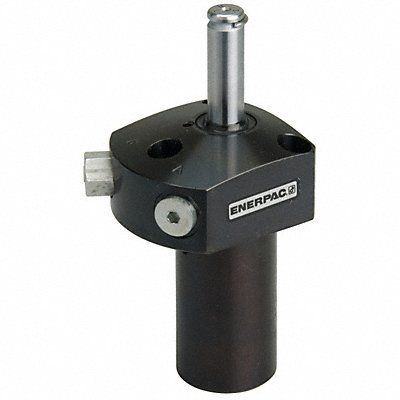

Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Upper Flange Single Acting/Double Acting Double Acting Turns Left Clamping Force 475 lb Total Stroke 1.91 in Effective Area Clamped 1.92 sq in Clamping Stroke 1.25 in Max Pressure 5 000 psi Series SU Swing Angle 90 Degrees Port Size #2 SAE Effective Area Unclamped 3.53 sq in Oil Capacity Clamped 3.53 cu in Oil Capacity Unclamped 6.77 cu in Max Oil Flow 12 cu in/min Pressure Range 500 to 5000 psi
Mfr SULS21
| Item Reference | 5UWX5 |
|---|---|
| Brand | ENERPAC |
| Weight (lb) | 1.51 |
| Length (in) | 4.6 |
| Width (in) | 4.4 |
| Height (in) | 3.6 |
| Harmonization Code | 8412210030 |
| Country of Origin | United States |
