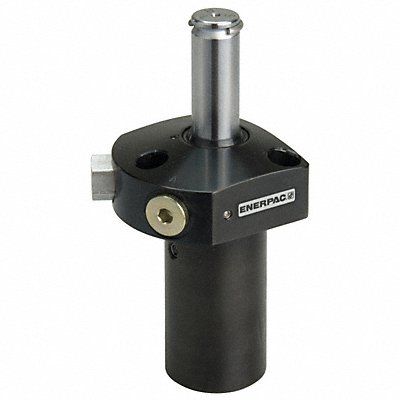

ENERPAC Swing Cylinder Upper Flange 1100 lb., 5UWX3

Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Upper Flange Single Acting/Double Acting Single Acting Turns Right Clamping Force 1 100 lb Total Stroke 0.89 in Effective Area Clamped 0.28 sq in Clamping Stroke 0.39 in Max Pressure 5 000 psi Series SU Swing Angle 90 Degrees Port Size #4 SAE Effective Area Unclamped 0.59 sq in Oil Capacity Clamped 0.25 cu in Oil Capacity Unclamped 0.52 cu in Max Oil Flow 25 cu in/min Pressure Range 500 to 5000 psi
