| Item Reference | 5UWX0 |
|---|---|
| Brand | ENERPAC |
| Weight (lb) | 2.35 |
| Length (in) | 9.6 |
| Width (in) | 3.9 |
| Height (in) | 3.4 |
| Harmonization Code | 8412210030 |
| Country of Origin | United States |

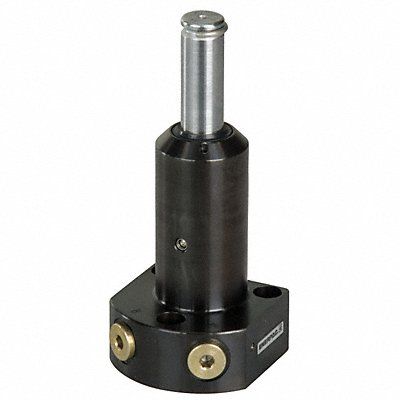

Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Lower Flange Single Acting/Double Acting Double Acting Turns Left Clamping Force 1 250 lb Total Stroke 0.89 in Effective Area Clamped 0.28 sq in Clamping Stroke 0.39 in Max Pressure 5 000 psi Series SLL Swing Angle 90 Degrees Port Size #4 SAE Effective Area Unclamped 0.59 sq in Oil Capacity Clamped 0.25 cu in Oil Capacity Unclamped 0.52 cu in Max Oil Flow 25 cu in/min Pressure Range 500 to 5000 psi
Mfr SLLD51
