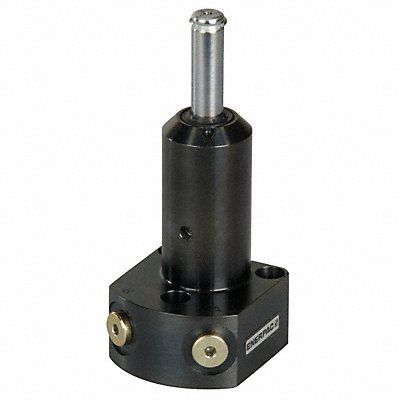

Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Lower Flange Single Acting/Double Acting Double Acting Turns Left Clamping Force 500 lb Total Stroke 0.65 in Effective Area Clamped 0.12 sq in Clamping Stroke 0.32 in Max Pressure 5 000 psi Series SLL Swing Angle 90 Degrees Port Size #2 SAE Effective Area Unclamped 0.24 sq in Oil Capacity Clamped 0.08 cu in Oil Capacity Unclamped 0.15 cu in Max Oil Flow 12 cu in/min Pressure Range 500 to 5000 psi
Mfr SLLD21
| Item Reference | 5UWU9 |
|---|---|
| Brand | ENERPAC |
| Weight (lb) | 1.56 |
| Length (in) | 4.8 |
| Width (in) | 4.6 |
| Height (in) | 3.5 |
| Harmonization Code | 8412210030 |
| Country of Origin | United States |
