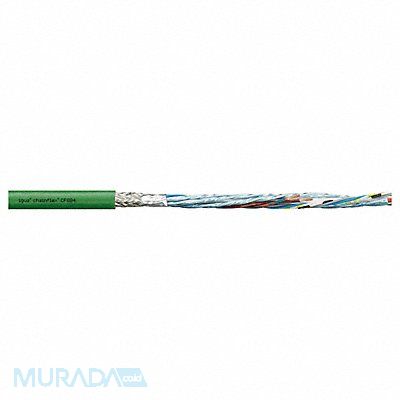

Measuring System Cable Conductor Color Code Blue/Violet Brown Brown/Green Grey/Pink Red/Black White Conductor Grouping (4) Pair 24 AWG 2C 20AWG Conductor Material Copper Jacket Color Yellow/Green Jacket Material PVC Length Order by the Foot Maximum Acceleration 65.6 m/sq sec Maximum Operating Temperature 158 Degrees F Maximum Velocity - Unsupported 10 fps Minimum Bend Radius Factor - E-Chain 15 x OD Minimum Bend Radius Factor - Fixed 8 x OD
Mfr CF884009
| Item Reference | 801M21 |
|---|---|
| Brand | CHAINFLEX |
| Weight (lb) | 0.061 |
| Length (in) | 18 |
| Width (in) | 13 |
| Height (in) | 6 |
| Harmonization Code | 8544493080 |
| Country of Origin | Germany |
