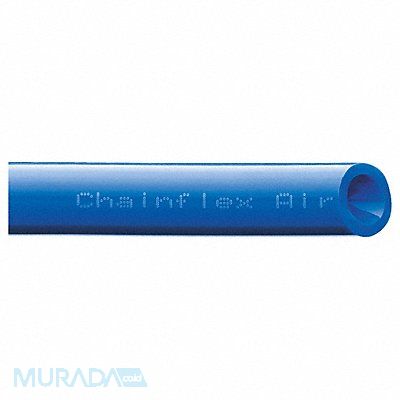

Pneumatic Tubing Inside Diameter 0.31 in Length Order by the Foot Maximum Acceleration 164 m/sq sec Maximum Operating Pressure 174 psi Maximum Operating Temperature - Fixed 212 Degrees F Maximum Operating Temperature - Flexible 176 Degrees F Maximum Vacuum Pressure -15 psi Maximum Velocity - Supported 20 fps Maximum Velocity - Unsupported 33 fps Minimum Bend Radius Factor - Fixed 7.5 x OD Minimum Bend Radius Factor - Flexible 10 x OD
Mfr CAPUI06
| Item Reference | 801KT8 |
|---|---|
| Brand | CHAINFLEX |
| Weight (lb) | 0.045 |
| Length (in) | 18 |
| Width (in) | 13 |
| Height (in) | 6 |
| Harmonization Code | 8544493080 |
| Country of Origin | Germany |
