| Item Reference | 2TYY8 |
|---|---|
| Brand | CHAINFLEX |
| Weight (lb) | 1.551 |
| Length (in) | 18 |
| Width (in) | 13 |
| Height (in) | 6 |
| Harmonization Code | 8544493080 |
| Country of Origin | Germany |

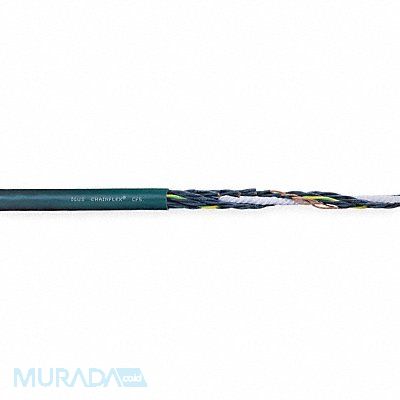

Control Cable Conductor Color Code (1) Green/Yellow Black with White Numbers Conductor Material Copper Conductor Size 16 AWG Jacket Color Green Jacket Material PVC Length Order by the Foot Maximum Operating Temperature 158 Degrees F Minimum Bend Radius Factor - E-Chain 6.8 x OD Minimum Bend Radius Factor - Fixed 4 x OD Minimum Bend Radius Factor - Flexible 5 x OD Minimum Operating Temperature - Flexible 23 Degrees F Number of Conductors 25 Outside Diameter 0.94 in
Mfr CF51525
