| Item Reference | 3M001 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 4.8 |
| Length (in) | 8.4 |
| Width (in) | 4.3 |
| Height (in) | 4.7 |
| Harmonization Code | 8501106020 |
| Country of Origin | Mexico |

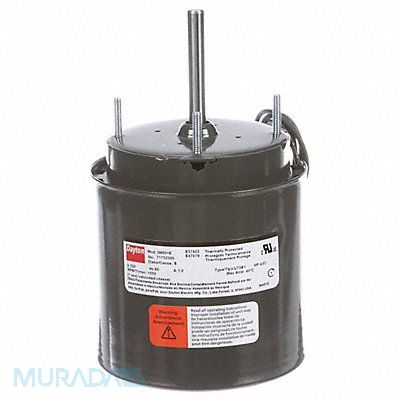

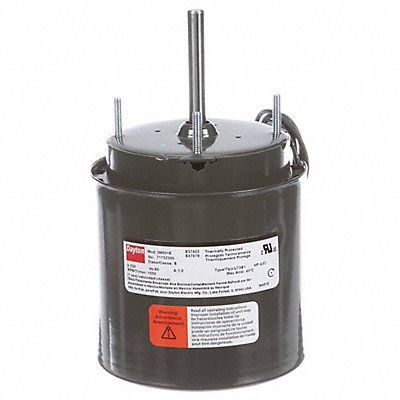

HVAC Motor Single Phase Motor Design Shaded Pole 1/20 HP Nameplate RPM 1 550 No of Speeds 1 Voltage 230V AC Full Load Amps 1.00 3.3 Frame Usable @ 208V No Usable @ 200V No Motor Thermal Protection Auto 60 Hz Hz Motor Service Factor 1 Ins. Class B Motor Shaft Rotation CWSE Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Stud Motor Mounting Position All Angle Number of Shafts 1
