| Item Reference | 5XAV2 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 155 |
| Length (in) | 16.5 |
| Width (in) | 23 |
| Height (in) | 20 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

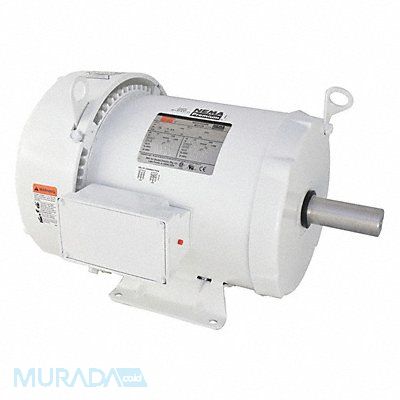

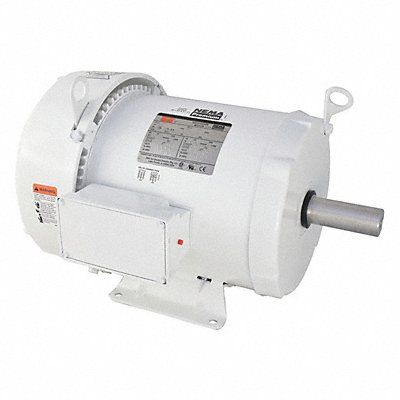

Washdown Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 1 765 Voltage 230/460V AC Full Load Amps 18.2/9.1 213T Frame 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Frame Material Epoxy Coated Rolled Steel
Mfr 5XAV2BG
