| Item Reference | 5XAT3 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 46.22 |
| Length (in) | 19 |
| Width (in) | 11.5 |
| Height (in) | 11 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

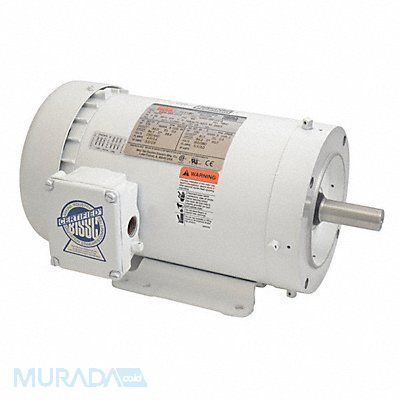

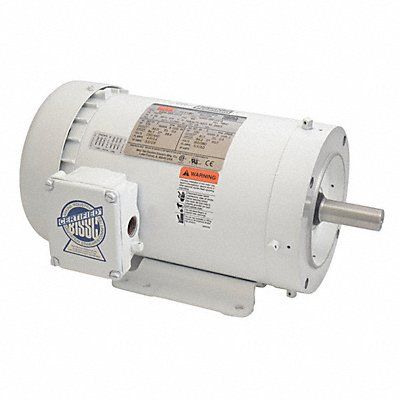

Washdown Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 3 505 Voltage 230/460V AC Full Load Amps 4.9/2.4 145TC Frame 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base Motor Mounting Position Horizontal Motor Frame Material Epoxy Coated Rolled Steel Endshield Material Cast Aluminum
Mfr 5XAT3BG
