| Item Reference | 1TTC3 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 26 |
| Length (in) | 15.3 |
| Width (in) | 10.5 |
| Height (in) | 10.875 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |

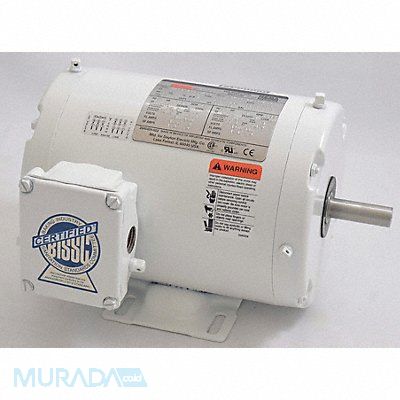

Washdown Motor Three Phase Motor Design 3-Phase 1/2 HP Nameplate RPM 1 750 Voltage 230/460V AC Full Load Amps 1.60/0.80 56 Frame 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Frame Material Epoxy Coated Rolled Steel
Mfr 1TTC3
