| Item Reference | 1TTB4 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 47.11 |
| Length (in) | 19.6 |
| Width (in) | 11.4 |
| Height (in) | 11.3 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

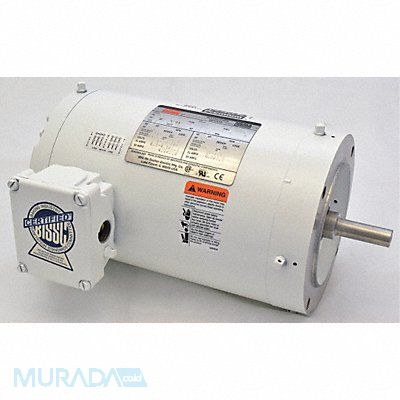

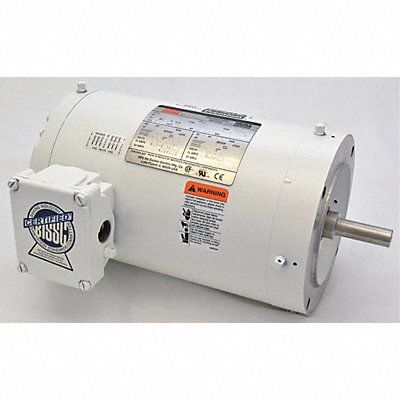

Washdown Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 1 750 Voltage 230/460V AC Full Load Amps 4.3/2.1 56C Frame 60 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Face Motor Mounting Position Horizontal Motor Frame Material Epoxy Coated Rolled Steel
Mfr 1TTB4
