| Item Reference | 2DAM7 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 117 |
| Length (in) | 13.8 |
| Width (in) | 10.2 |
| Height (in) | 8.4 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

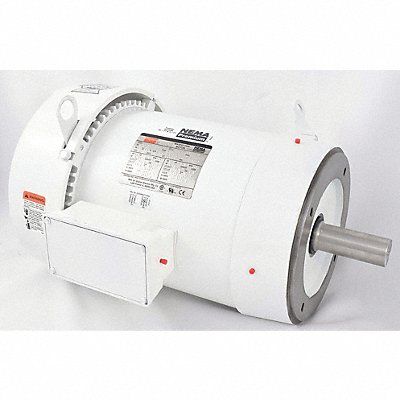

Washdown Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 1 765 Voltage 230/460V AC Full Load Amps 18.2/9.1 213TC Frame 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face Motor Mounting Position Horizontal Motor Frame Material Epoxy Coated Rolled Steel
