| Item Reference | 42CW10 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 20.75 |
| Length (in) | 13.4 |
| Width (in) | 8.4 |
| Height (in) | 10 |
| Harmonization Code | 8501404040 |
| Country of Origin | China |

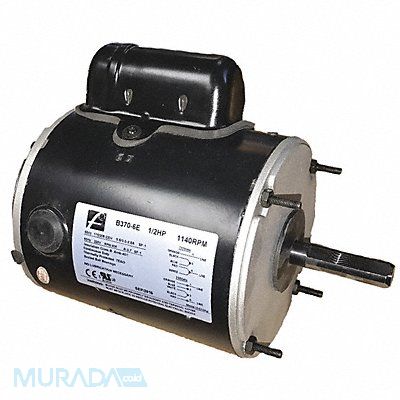

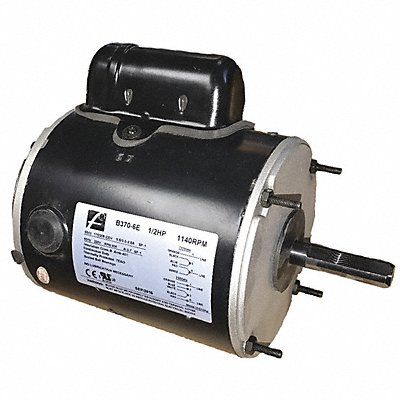

Agricultural Fan Motor Single Phase Motor Design Split-Phase 1/2 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 115/230V AC Full Load Amps 5.6/2.8 48 Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Face Motor Mounting Position Horizontal Motor Frame Material Steel
Mfr B3706E
