| Item Reference | 52XR29 |
|---|---|
| Brand | WEG |
| Weight (lb) | 37 |
| Length (in) | 17.3 |
| Width (in) | 11.8 |
| Height (in) | 11.6 |
| Harmonization Code | 8501406040 |
| Country of Origin | MULTIPLE |

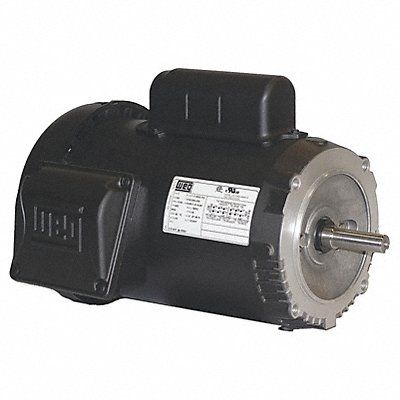

General Purpose Motor Single Phase Motor Design Capacitor-Start 1 HP Nameplate RPM 1 745 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 13.6/7.5-6.8 56C Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design None Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base
