| Item Reference | 52XR20 |
|---|---|
| Brand | WEG |
| Weight (lb) | 10.8 |
| Length (in) | 14 |
| Width (in) | 8.7 |
| Height (in) | 9.2 |
| Harmonization Code | 8501514040 |
| Country of Origin | MULTIPLE |

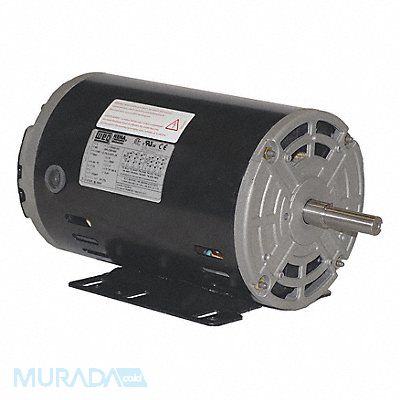

General Purpose Motor Three Phase Motor Design 3-Phase 3/4 HP Nameplate RPM 3 485 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 2.5-2.3/1.10 56 Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position All Angle Inverter Rated Yes
