| Item Reference | 482V89 |
|---|---|
| Brand | WEG |
| Weight (lb) | 352 |
| Length (in) | 29.2 |
| Width (in) | 15.8 |
| Height (in) | 19.7 |
| Harmonization Code | 8501524000 |
| Country of Origin | Brazil |

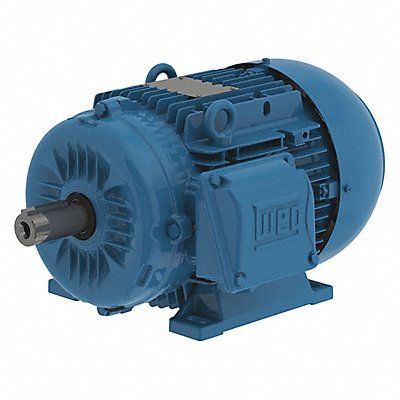

Metric Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 880 No of Speeds 1 Voltage 460V AC Full Load Amps 15.0 160L Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design N Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Shaft Design Keyed Motor Frame Material Cast Iron
Mfr 11661300
