| Item Reference | 15G096 |
|---|---|
| Brand | WEG |
| Weight (lb) | 2545 |
| Length (in) | 57.1 |
| Width (in) | 42.2 |
| Height (in) | 37.3 |
| Harmonization Code | 8501538040 |
| Country of Origin | MULTIPLE |

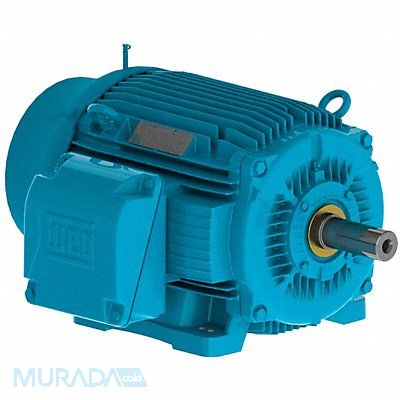

IEEE 841 Motor Three Phase Motor Design 3-Phase 300 HP Nameplate RPM 1 780 No of Speeds 1 Voltage 460V AC Full Load Amps 330.0 447/9T Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 30018ST3QIERB449TW2
