| Item Reference | 35JF94 |
|---|---|
| Brand | WEG |
| Weight (lb) | 21.7 |
| Length (in) | 15.7 |
| Width (in) | 12.4 |
| Height (in) | 9 |
| Harmonization Code | 8501514040 |
| Country of Origin | MULTIPLE |

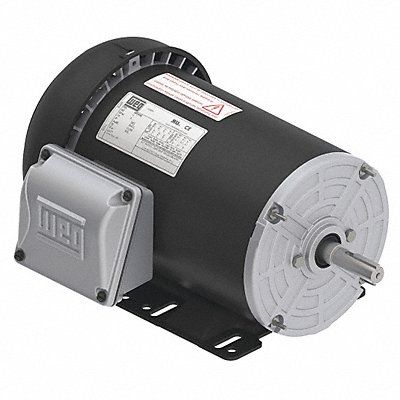

General Purpose Motor Three Phase Motor Design 3-Phase 1/4 HP Nameplate RPM 1 765 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 1.20-1.00/0.52 56 Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position All Angle
Mfr 2518ES3E56S
