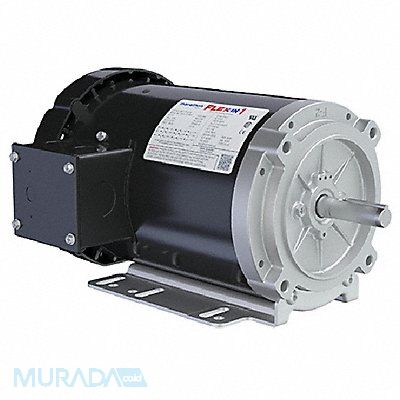

General Purpose Motors Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 4.7-4.6/2.3 56HC Frame Usable @ 208V Yes Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CCW Motor Mounting Type Universal Motor Mounting Position Horizontal
Mfr 056T17F15954
| Item Reference | 801VA1 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 45.9 |
| Length (in) | 16.2 |
| Width (in) | 10.5 |
| Height (in) | 8.7 |
| Harmonization Code | 8501406040 |
| Country of Origin | Mexico |
