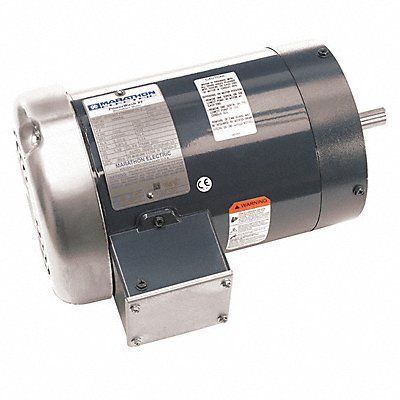

Severe Duty Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 230/460V AC Full Load Amps 3.2/1.60 56C Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face Motor Mounting Position Horizontal Inverter Rated No
Mfr 056T17W99021
| Item Reference | 53DE48 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 37.98 |
| Length (in) | 15.1 |
| Width (in) | 11.2 |
| Height (in) | 12 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |
