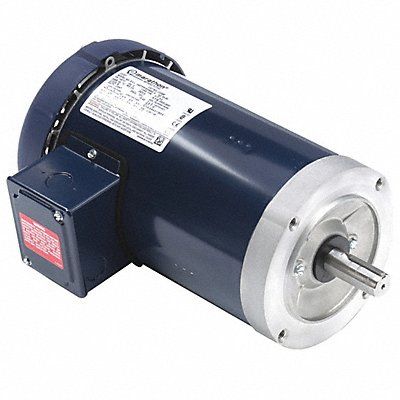

General Purpose Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 3 505 No of Speeds 1 Voltage 230/460V AC Full Load Amps 7.6/3.8 145TC Frame Usable @ 208V No Usable @ 200V No Hz 60/50 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design A Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face Motor Mounting Position Horizontal
Mfr 145TTFR16105
| Item Reference | 52XR66 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 44.69 |
| Length (in) | 16.3 |
| Width (in) | 11.1 |
| Height (in) | 8.5 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
