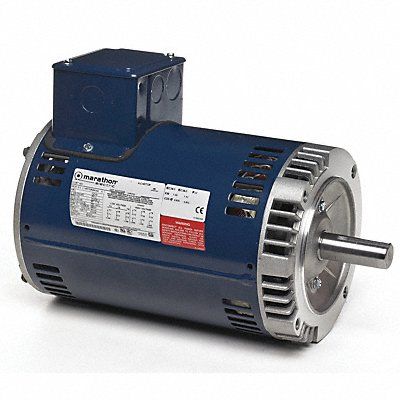

General Purpose Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 3 500 No of Speeds 1 Voltage 230/460V AC Full Load Amps 12.4/6.2 182TC Frame Usable @ 208V No Usable @ 200V No Hz 60/50 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Face Motor Mounting Position Horizontal Inverter Rated No
Mfr 182TTDBD6004
| Item Reference | 52XR48 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 90 |
| Length (in) | 16.8 |
| Width (in) | 14.2 |
| Height (in) | 13.8 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
