| Item Reference | 21YZ88 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 15.25 |
| Length (in) | 15.8 |
| Width (in) | 10.8 |
| Height (in) | 10.1 |
| Harmonization Code | 8501513040 |
| Country of Origin | Mexico |

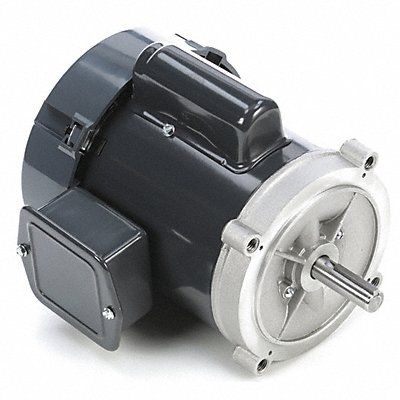

General Purpose Motor Single Phase Motor Design Capacitor-Start 1/4 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/230V AC Full Load Amps 5.4/2.7 56C Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face Motor Mounting Position Horizontal Inverter Rated No
Mfr 5KC32GN25
