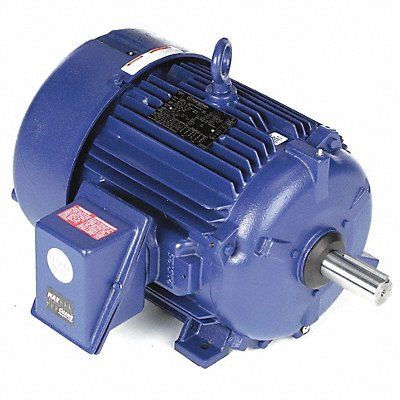

Severe Duty Motor Three Phase Motor Design 3-Phase 15 HP Nameplate RPM 1 772 No of Speeds 1 Voltage 230/460V AC Full Load Amps 37.5/18.8 254T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class H NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 254TTFCD6529
| Item Reference | 19RX63 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 355 |
| Length (in) | 32.3 |
| Width (in) | 24 |
| Height (in) | 21.3 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
