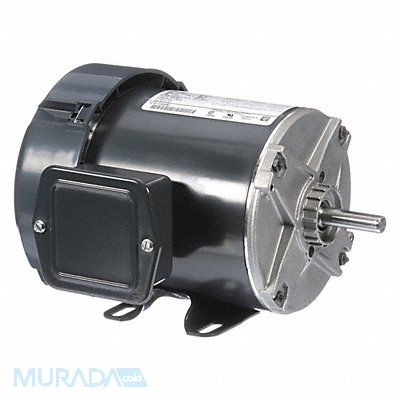

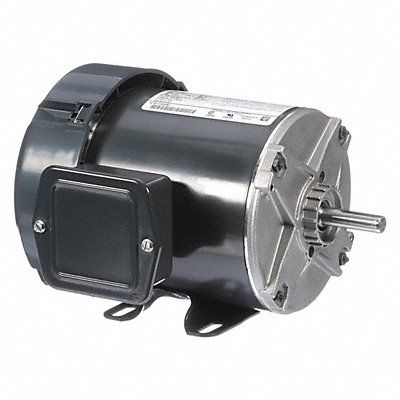

General Purpose Motor Three Phase Motor Design 3-Phase 1/4 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 1.40-1.30/0.70 48 Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.35 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base
Mfr 5K32GN30
| Item Reference | 44Z744 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 14.56 |
| Length (in) | 15.9 |
| Width (in) | 10.2 |
| Height (in) | 8.5 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |
