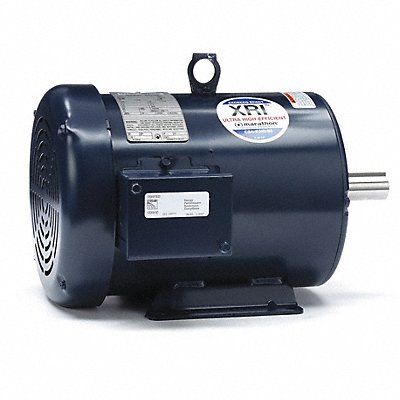

General Purpose Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 755 No of Speeds 1 Voltage 230/460V AC Full Load Amps 13.0/6.5 184T Frame Usable @ 208V No Usable @ 200V No Hz 60/50 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 184TTFBD6027
| Item Reference | 44Z458 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 86 |
| Length (in) | 18.5 |
| Width (in) | 13.8 |
| Height (in) | 14.2 |
| Harmonization Code | 8501513040 |
| Country of Origin | Mexico |
