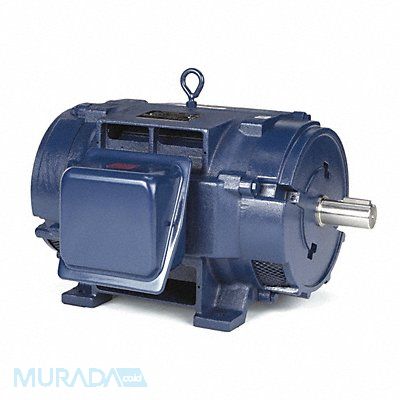

General Purpose Motor Three Phase Motor Design 3-Phase 40 HP Nameplate RPM 1 780 No of Speeds 1 Voltage 230/460V AC Full Load Amps 95.5/47.5 324TS Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 324TSTDBD6026
| Item Reference | 44Z213 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 462 |
| Length (in) | 35 |
| Width (in) | 26 |
| Height (in) | 24.36 |
| Harmonization Code | 8501528040 |
| Country of Origin | Mexico |
