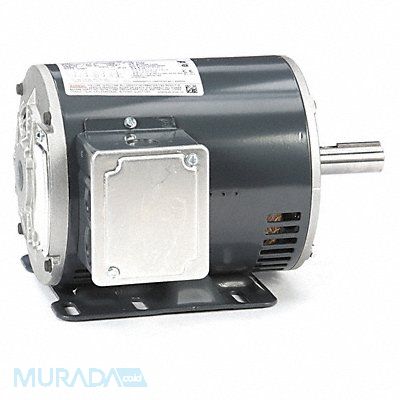

General Purpose Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 3.6-3.4/1.80 56HZ Frame Usable @ 208V Yes Usable @ 200V No Hz 60/50 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes
Mfr 056T17D3301
| Item Reference | 44Y966 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 27 |
| Length (in) | 16.5 |
| Width (in) | 10.6 |
| Height (in) | 9 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
