| Item Reference | 5THZ5 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 29 |
| Length (in) | 20 |
| Width (in) | 13 |
| Height (in) | 14 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |

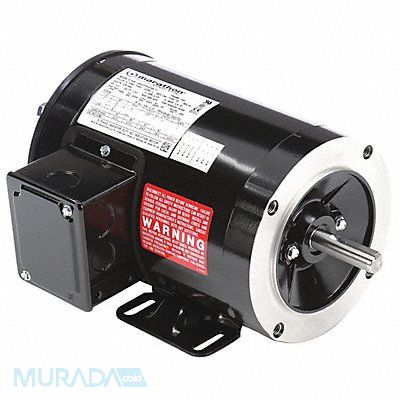

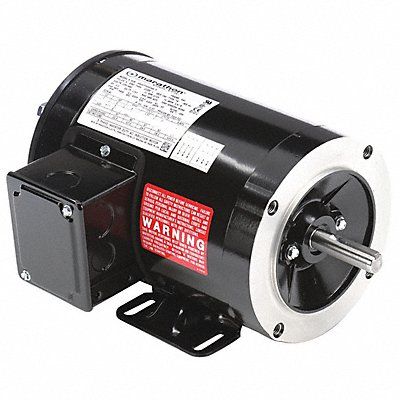

Vector Motor Three Phase Motor Design 3-Phase 1/2 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 230/460V AC Full Load Amps 1.60/0.80 56C Frame Torque 1.5 ft-lb Max Speed 5 400 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class H Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 056H17T15526
