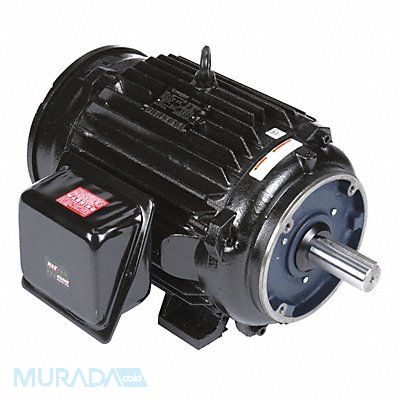

Vector Motor Three Phase Motor Design 3-Phase 30 HP Nameplate RPM 1 772 No of Speeds 1 Voltage 230/460V AC Full Load Amps 74.0/37.0 286TC Frame Torque 89 ft-lb Max Speed 1 800 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 286THTNA7026
| Item Reference | 5THZ4 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 535 |
| Length (in) | 35 |
| Width (in) | 26 |
| Height (in) | 20.95 |
| Harmonization Code | 8501528040 |
| Country of Origin | United States |
