| Item Reference | 5THY4 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 95 |
| Length (in) | 22 |
| Width (in) | 17 |
| Height (in) | 15 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

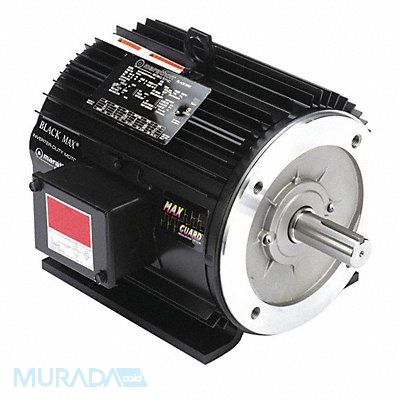

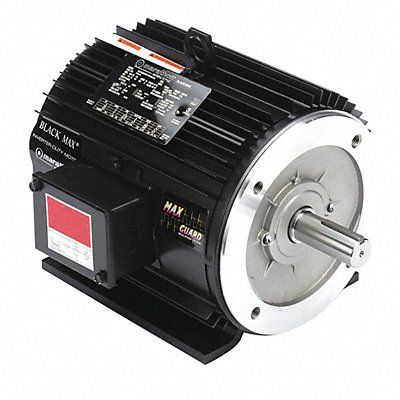

Vector Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 755 No of Speeds 1 Voltage 230/460V AC Full Load Amps 8.2/4.1 182TC Frame Torque 9 ft-lb Max Speed 5 400 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 182THTY7726
