| Item Reference | 15G104 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 26.7 |
| Length (in) | 16.1 |
| Width (in) | 12.9 |
| Height (in) | 10.9 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |

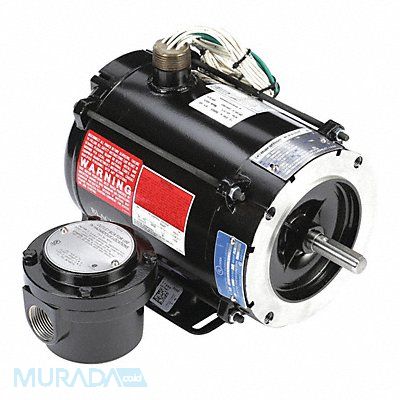

Vector Motor Three Phase Motor Design 3-Phase 1/4 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 230/460V AC Full Load Amps 1.10/0.55 56C Frame Torque 0.75 ft-lb Max Speed 3 600 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
Mfr 056H17E5301
