| Item Reference | 19RX30 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 127 |
| Length (in) | 15.82 |
| Width (in) | 12.56 |
| Height (in) | 9.38 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

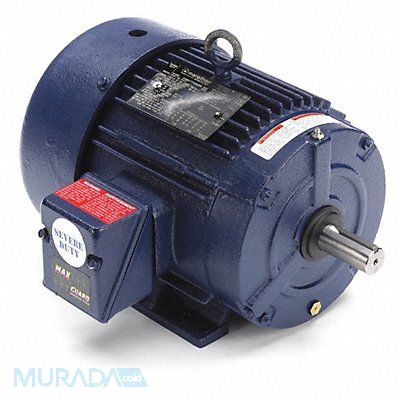

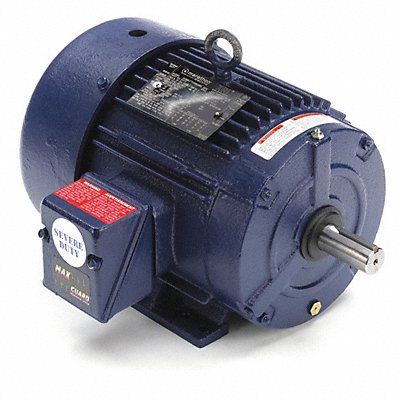

Severe Duty Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 3 510 No of Speeds 1 Voltage 230/460V AC Full Load Amps 12.0/6.0 184T Frame Usable @ 208V No Usable @ 200V No Hz 60 Max Ambient Temp 104 Degrees F Motor Service Factor 1.15 Ins. Class H Hazardous Location Class 1 A B C D Temp Code T2B Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous Motor Mounting Type Rigid Base NEMA Design B Motor Shaft Rotation CW/CCW
Mfr 184TTFCD6810
