| Item Reference | 39W950 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 156 |
| Length (in) | 22.5 |
| Width (in) | 16.812 |
| Height (in) | 14 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

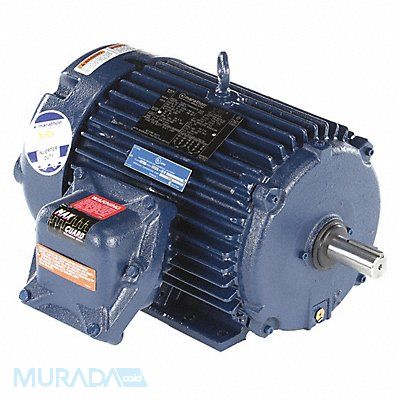

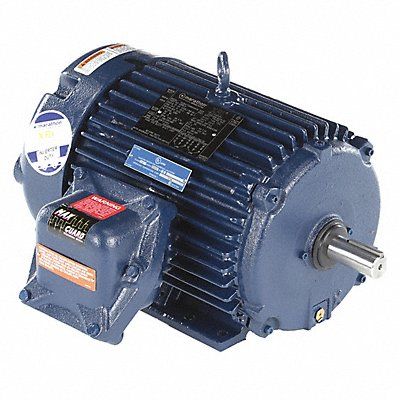

Hazardous Location Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 755 No of Speeds 1 Voltage 230/460V AC Full Load Amps 12.4/6.2 184T Frame Usable @ 208V No Usable @ 200V No Hz 60 Max Ambient Temp 104 Degrees F Motor Service Factor 1.15 Motor Thermal Protection T-Stat Ins. Class F Hazardous Location Class 1 C D / 2 F G Temp Code T3B Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous Motor Mounting Type Rigid Base NEMA Design B
Mfr 184TTGCD6544
