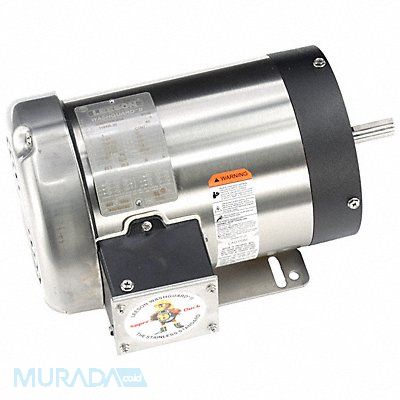

Washdown Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 3.2 to 3.2/1.6 A 56HC Frame Usable @ 208V Yes 60 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Frame Material Stainless Steel
Mfr 11949000
| Item Reference | 798KM1 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 38.2 |
| Length (in) | 19.9 |
| Width (in) | 11.3 |
| Height (in) | 11.9 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |
