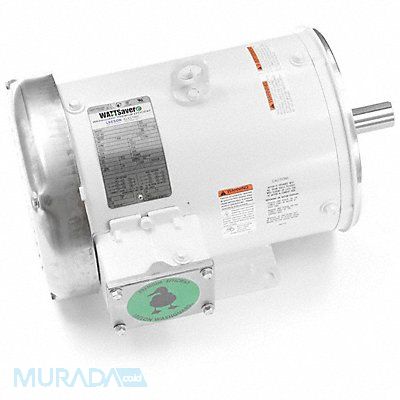

Washdown Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 230/460V AC Full Load Amps 12.6/6.3 A 184TC Frame 60 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection None Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Enclosure Design Totally Enclosed Fan Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Frame Material Rolled Steel Finish Enamel
Mfr 13220100
| Item Reference | 798GE1 |
|---|---|
| Brand | LEESON |
| Weight (lb) | 91.002 |
| Length (in) | 20.2 |
| Width (in) | 15.2 |
| Height (in) | 13.2 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
